C A R B O N L I G H T
CARBON LIGHT IS A HIGH-PERFORMANCE MODULAR SUSPENSION LIGHT THAT EXPLOITS THE LATEST CUT IN LED TECHNOLOGY. WITH AN ADAPTABLE DESIGN AND MULTIPLE LED SPOT OPTIONS, CARBON LIGHT ALLOWS YOU TO CREATE THE OPTIMUM ILLUMINATION SCHEME FOR ANY SURFACE.
STANDARD EDITIONS
CARB 12.00
L. 245 cm / 96 " W. 135 cm / 53 "
CARB 12.00
L. 245 cm / 96 " W. 135 cm / 53 "
CARB 08.00
L. 95 cm / 37 " W. 95 cm / 37 "
CARB 08.00
L. 95 cm / 37 " W. 95 cm / 37 "
CARB 06.00
L. 154 cm / 60 " W. 86 cm / 24 "
CARB 06.00
L. 154 cm / 60 " W. 86 cm / 24 "
CARB 05.00
L. 177 cm / 70 " W. 8 cm / 3 "
CARB 05.00
L. 177 cm / 70 " W. 8 cm / 3 "
CARB 04.01
L. 135 cm / 53 " W. 8 cm / 3 "
CARB 04.01
L. 135 cm / 53 " W. 8 cm / 3 "

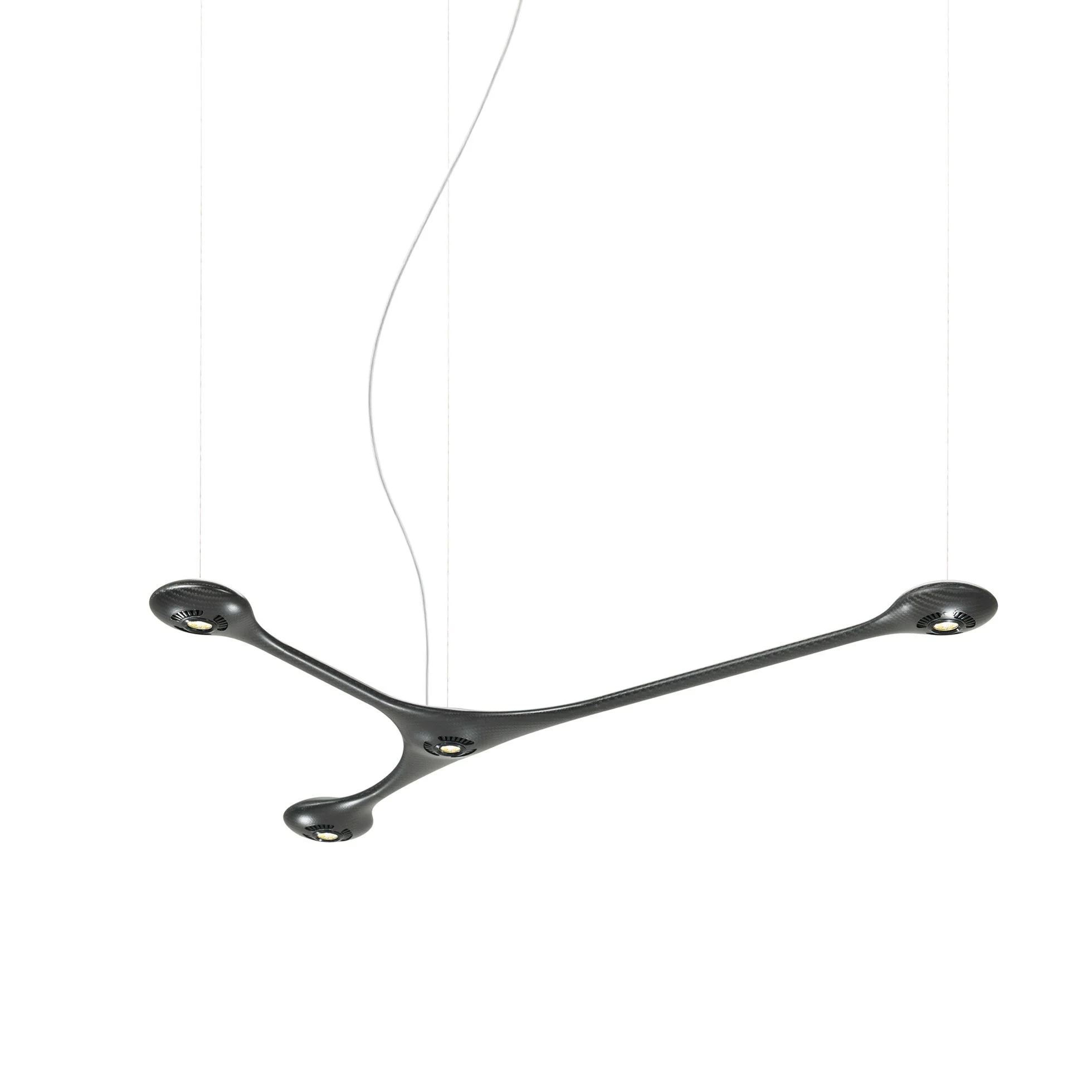

CARB 04.00
L. 78 cm / 30 " W. 47 cm / 18 "
CARB 04.00
L. 78 cm / 30 " W. 47 cm / 18 "
CARB 03.00
L. 93 cm / 36 " W. 8 cm / 3 "
CARB 03.00
L. 93 cm / 36 " W. 8 cm / 3 "
SPECIAL EDITIONS
CARB 07.02
L. 300 cm / 117 " W. 160 cm / 62 "

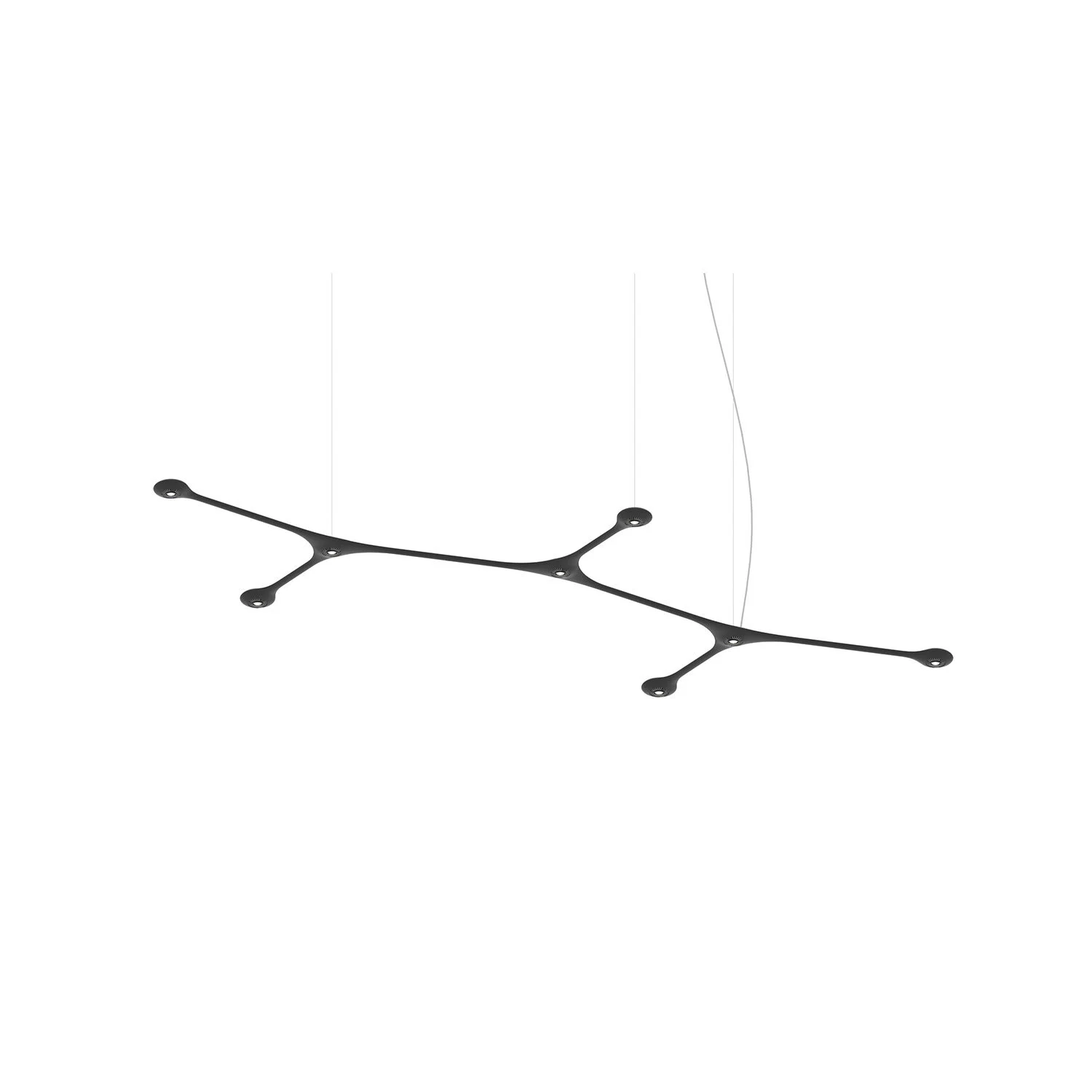

CARB 08.01
L. 201 cm / 80 " W. 83 cm / 33 "
CARB 09.02
L. 344 cm / 130 " W. 160 cm / 64 "
CARB 10.01
L. 256 cm / 101 “ W. 83 cm / 33 "
CARB 14.01
L. 365 cm / 143 “ W. 83 cm / 33 "
CARB 18.03
L. 350 cm / 137 “ W. 130 cm / 51 "
CARB 20.01
L. 305 cm / 120 " W. 140 cm / 55 "
CARB 22.01
L. 260 cm / 101 " W. 155 cm / 61 "
CARB 22.02
L. 338 cm / 131 " W. 144 cm / 60 "
CARB 24.03
L. 356 cm / 138 " W. 160 cm / 68 "
CARB 24.05
L. 222 cm / 88 " W. 222 cm / 88 "
CARB 46.02
L. 477 cm / 186 " W. 255 cm / 106 "
CARB 30.02
L. 435 cm / 170 " W. 185 cm / 81 "
OTHER CONFIGURATIONS AVAILABLE ON SPECIAL REQUEST
TABLE / WALL / FLOOR
CARB 01W
L. 66 cm / 26 " W. 12.7 cm / 5 " H. 19 cm / 7.5 "
CARB 01W
L. 66 cm / 26 " W. 12.7 cm / 5 " H. 19 cm / 7.5 "
CARB 01W
L. 66 cm / 26 " W. 12.7 cm / 5 " H. 19 cm / 7.5 "
CARB 01T
L. 63.3 cm / 24.9 " W. 20 cm / 7.9 " H. 49 cm / 19.3 "
CARB 01T
L. 63.3 cm / 24.9 " W. 20 cm / 7.9 " H. 49 cm / 19.3 "
CARB 01F
L: 76 cm / 29.93" W: 25 cm / 9.85" H: 126 cm / 49.61"
TECHNICAL DATA
Modular structure made of carbon fibre - done by hand
Matte finish in exposed carbon fibre appearance or in any RAL colour
Source: 6W LED bulb per module
L70 life: 50,000 hours
Colour temperature: 2700K (620lm), 3000K (668lm), 3500K (688lm) or 4000K (718lm); CRI 90
Optics: narrow 26°, medium 34° or wide 54°
Dimming: 1 - 10V, DALI (0 - 10V), push dimming; PWM not compatible
Up-light modules available
Custom, bespoke configurations available
